Learning the Guts of Fast Drone Racing
When it comes to FPV drones, the FPV drone motor is the crucial factor that will decide how much speed you get, how much thrust you get, how much you can maneuver, and how much you can perform. Whether you’re into freestyle, cinematic, or racing drones, the correct motor can take your flight experience to another level. This guide takes you deep into the world of FPV motors, the many standout models, specifications, and performance.

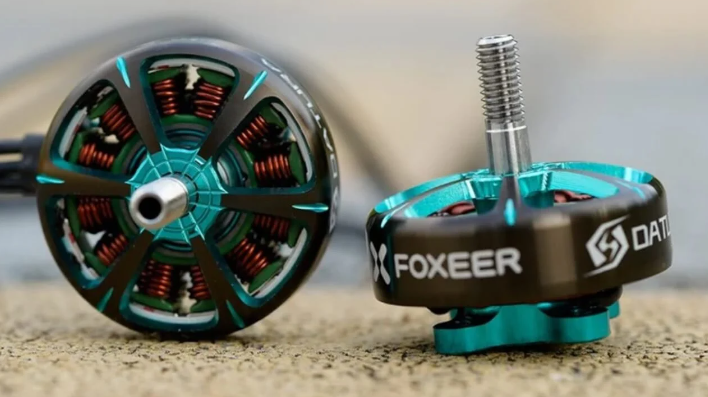

What Is an FPV Drone Motor?

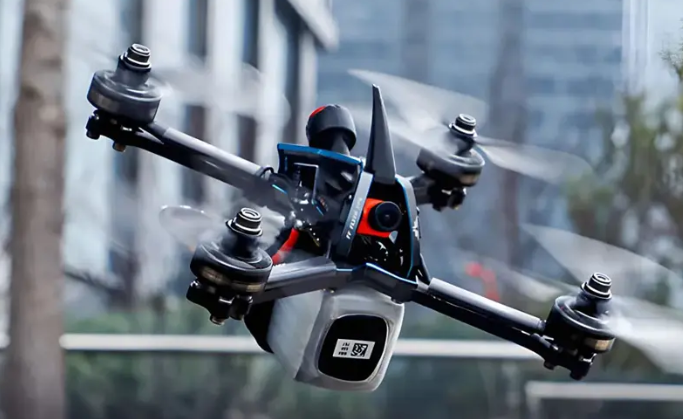

An FPV drone motor is a type of brushless electric motor made for drones that shares a real-time first-person view during the flight. Contrary to conventional drone motors, FPV motors are designed for high RPMs (revolutions per minute), a greater thrust-to-weight ratio, and quicker response times essential for racing and acrobatics.
They’re usually sold in matched pairs (cw and ccw) for stability and efficiency. A great FPV motor strikes that balance of speed, efficiency, and durability to meet the grueling demands of high-performance FPV racing.
Main Parameter of The FPV Racing Drone Motors
To select the best FPV drone motor for your needs, you must know what defines such performance. Here are the key ones:
Motor Size (Stator Size)
Motors listed as four numbers (e.g., 2207) refer to:
22 is the stator diameter in mm.
07 is the stator height in millimeters
The bigger the stator, the more power, the smaller for efficiency and light weight.
KV Rating
The KV of the motor is the relation between the no-load running speed on a constant voltage between two points (rmps) and the constant voltage running (volts) it takes to reach that speed. For instance:
High KV motors (2500KV+) provide high speed and thrust, but they also draw more power.
Lower KV motors (1500KV to 1800KV) offer better control at low throttle capacity and longer flight time, which is perfect for those who love to fly perfectly cinematically.
Motor Weight and Material
Lighter motors promote agility, but heavier motors may produce more thrust and be detrimental to the battery. With essential materials like alloy aluminium and titanium steel axes, you can be sure your copter is not going to break in a collision.
Bearing Quality
Precision bearings with low friction provide better rotation and add to the smoothness, ensuring stable and quiet rotation, which increases motor efficiency and the life of the motor. Ceramic bearings are a popular choice for motors of high-end FPV drones.
Types of FPV Drone Motors
FPV drone motors classifications: FPV drone motors can be classified according to their purposes:
Racing Motors
High KV for extreme speed.
Lightweight design to enhance agility.
Prioritize quick throttle response.
Freestyle Motors
Trade off between speed and torques for acrobatics.
Stronger build to withstand crashes.
Heavier than race motors for a more stable ride.
Cinematic Motors
With the low KV value, it can reach a speed of 2000m above sea level.
Designed for vibration control for clear videos.
Optimal power consumption for long shooting sessions.
Performance Factors to Consider
Selecting the best FPV drone motor goes beyond simply looking at KV ratings. Here are some other factors to consider:
Propeller Compatibility
Propeller’s diameter and pitch should be adjusted to the motor’s current to achieve the best performance. Big props require more powerful motors, so it’s easy to figure out how large the motor must be to turn them. And small props work well with high KV motors.
Voltage Range (Battery Type)
The majority of inductrix FPV drones are powered by 4S – 6S LiPo (Lithium Polymer) batteries (the “S” stands for the number of cells). High-voltage arrangements also need motors that are created for that extra power so they don’t overheat.
Cooling and Heat Dissipation
High-performance motors generate significant heat. Seek out motors which have good cooling equivalently in the form of open bases or vented bells to avoid too high a heating up.
Durability and Crash Resistance
FPV Drones are known to crash, whether it’s into a wall, floor, tree, or another quadcopter; they are not quite as ‘safe’ as camera drones. Motors with the strengthened structure of bells and higher quality of the shaft materials would also be more suitable for this kind of crash.
On such tiny devices, plugging the motor directly will lead to a very tiny or no effect.
By keeping motors and propellers more efficient, it will not only give you better flights, but also longer flight times on the same battery. Here are some best practices:
Counteract Propellers – Out-of-balance props can make your drone shake, and the motor seems like a powerful, consuming battery.
Don’t Over-Prop – Incorrectly sized props or excessive pitch will overload the motor.
Track Heat- Overheating causes heat loss to minimize and the motor to suffer permanent damage.
Routine Maintenance – Dirt and grime can collect inside motors, causing friction and wear over time.
Use Good ESCs – The Electronic Speed Controllers (ESCs) that you choose need to fit with the motors for an efficient delivery of power.
Popular FPV Drone Motor Brands
There are a few big names when it comes to the FPV drone motor market in terms of performance and reliability:
T-Motor – Expensive motors, good efficiency, and well-made.
iFlight XING – Known to be tough and good for freestyle and racing.
EMAX Â- Affordable and a very good beginner racer.
BrotherHobby – Famous for high torque motors and smooth flying agility.
Cost Considerations
FPV Quadcopter Motors are, of course, priced for a range, and you’ll find budget options ($15–$25 each) and higher-end models ($40–$60 each) in our reviews. Which is right for you depends on your skill level, type of drone, and whether you’re after durability, speed, or smooth cinematic flight.
Table of Contents
Final Thoughts
Choosing the right FPV drone motor is not possible without knowing motor specs, your flying style, and performance expectations. Whether you’re burning up the track or ripping up the sky, the perfect motor can make all the difference in any build, but with so many options on the market, it can be hard to find that ideal combo. Taking into account concerns such as KV rating, stator dimension, durability, type, and efficiency, you can create an FPV Drone that not only performs extremely well but is also long-lasting and reliable.
